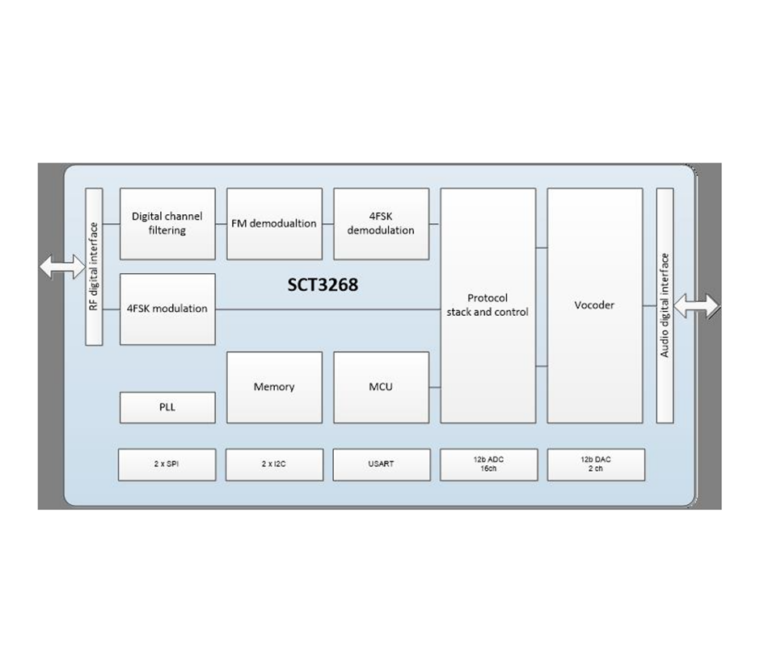

The SCT3268TD is a highly integrated, low power, high performance, Digital/Analog DMR/dPMR/PMR/LMR baseband processor with an embedded vocoder and ARM 32-bit Cortex-M0 host microcontroller.
The SCT3268TD is available from CML’s ‘Sicomm Technologies’ product range that is specifically targeted at high volume and low cost radio applications.
The SCT3268TD includes the entire physical layer, data link layer and much of the call control layer processing of the digital PMR/LMR radio protocols. Combined with a suitable RF front end, external audio codec and host controller, a complete digital radio that also supports analog mode can be developed in a short time frame.
The Design Reference SCT9389 provides a an easy route to developing a 2W multi-mode DMR/dPMR/Analog radio.
Detailed product support is available including an evaluation kit, application notes, FAQs and reference design material.
Devices are available through our Distributor Network.
If you require access please contact your local CML representative.
If you require access please contact your local CML representative.
SCT9389 | The SCT9389 is a small form factor PMR radio transceiver that supports DMR/Analog operation or dPMR/Analog operation and has been tested against EN 300 113 requirements. | SCT9389_Product_Preview |
SCT9389HDK | The STC9389-HDK Hardware Development Kit implements a complete radio solution based on the SCT9389 design. | SCT9389_HDK_User_Manual |
