MwT-7F

26 GHz Medium Power GaAs FET

HFETs

MwT-7F

26 GHz Medium Power GaAs FET

The MwT-7F is a GaAs MESFET device whose nominal 0.25 micron gate length and 250 micron gate width make it ideally suited to applications requiring high-gain and medium linear power in the 500 MHz to 26 GHz frequency range. MwT-7F is equally effective for either wideband (e.g., 6 to 18 GHz) or narrow-band applications. Processing which guarantees low phase noise makes the MwT-7F particularly attractive for oscillator applications. All chips are passivated with SiN (Silicon Nitride).

Download Datasheet

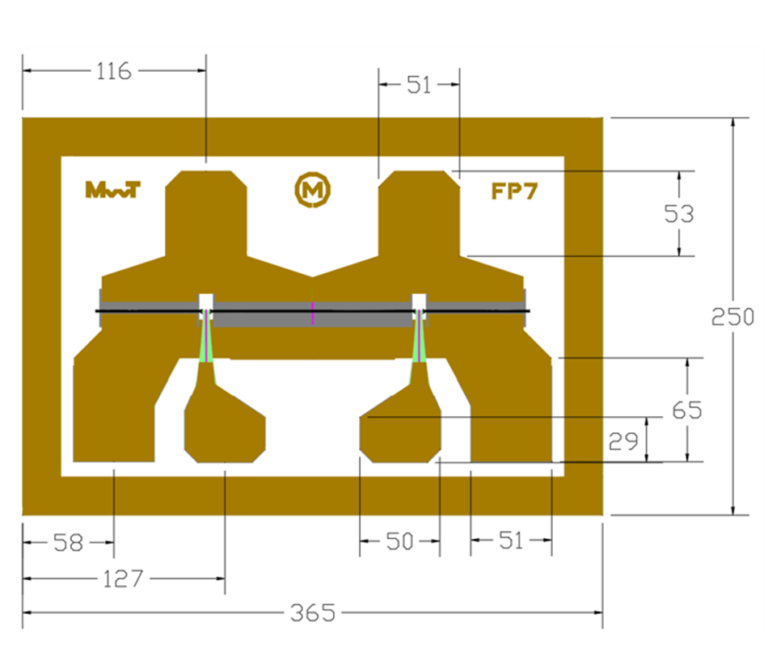

Technical outline drawing of a MwT FP7 leadframe package, showing the pin layout, ground tabs, and dimension callouts (overall size 365 x 250)

MwT-7F Diagram

Need more information? Contact us here

Quick Product Selector

Find the part you need for your application using our product selector.

View Full Product Selector

SµRF branded gold semiconductor die next to a SOT-23 packaged discrete component, shown against a dark circuit-board background

MwT-11F

MwT-11F High Power, High Linearity GaAs FET

Key Features

Package Available Sealed/ Hermetic: 71
RF Power @12 GHz (dBm): 32
Small Signal Gain @12 GHz (dB): 9
PAE @12GHz (%): 40
Chip Size (µm): 775 x 343
Gate Width (µm): 2400
Gate Pads (each): 2
Drain Pads (each): 2
Replaces: MwT-11

Explore

SµRF branded gold semiconductor die next to a SOT-23 packaged discrete component, shown against a dark circuit-board background

MwT-1F

MwT-1F 12 GHz High Gain GaAs FET

Key Features

Package Available Sealed/ Hermetic: 70 / 71 / 73
RF Power @12 GHz (dBm): 26
Small Signal Gain @12 GHz (dB): 10
NF @12GHz (dB): 2
Chip Size (µm): 775 x 241
Gate Width (µm): 630
Gate Pads (each): 1
Drain Pads (each): 1
Replaces: MwT-1

Explore

SµRF branded gold semiconductor die next to a SOT-23 packaged discrete component, shown against a dark circuit-board background

MwT-3F

MwT-3F 26 GHz High Power GaAs FET

Key Features

Package Available Sealed/ Hermetic: 70 / 71 / 73
RF Power @12 GHz (dBm): 22
Small Signal Gain @12 GHz (dB): 14
PAE @12GHz (%): 35
Chip Size (µm): 406 x 241
Gate Width (µm): 300
Gate Pads (each): 1
Drain Pads (each): 1
Replaces: MwT-3

Explore

SµRF branded gold semiconductor die next to a SOT-23 packaged discrete component, shown against a dark circuit-board background

MwT-5F

MwT-5F 26 GHz High Gain, Dual Gate GaAs FET

Key Features

Package Available Sealed/ Hermetic: 71
RF Power @12 GHz (dBm): 21
Small Signal Gain @12 GHz (dB): 19
NF @12GHz (dB): 3.5
Chip Size (µm): 406 x 241
Gate Width (µm): 300 Dual
Gate Pads (each): 1
Drain Pads (each): 3
Replaces: MwT-5

Explore

SµRF branded gold semiconductor die next to a SOT-23 packaged discrete component, shown against a dark circuit-board background

MwT-7F

MwT-7F 26 GHz Medium Power GaAs FET

Key Features

Package Available Sealed/ Hermetic: 70 / 71 / 73
RF Power @12 GHz (dBm): 21
Small Signal Gain @12 GHz (dB): 15
NF @12GHz (dB): 2
Chip Size (µm): 356 x 241
Gate Width (µm): 250
Gate Pads (each): 2
Drain Pads (each): 2
Replaces: MwT-7, S7, LP7

Explore
