MMG-446040-S5

10 Watt 4.4 – 6.0 GHz GaN Power Amplifier

Pre-Production

GaN High Power Amplifiers

MMG-446040-S5

10 Watt 4.4 – 6.0 GHz GaN Power Amplifier

The MMG-446040-S5 is a high-performance gallium nitride (GaN) MMIC power amplifier. The MMG-446040-S5 provides >10W of saturated output power, 40% power added efficiency, and 27 dB of large-signal gain between 4.4 GHz and 6.0 GHz. Both input and output are matched to 50 ohms. Ideal applications include wireless mesh networks, Point-to-point wireless data links, military wireless communications, telemetry, and avionics.

Download Datasheet

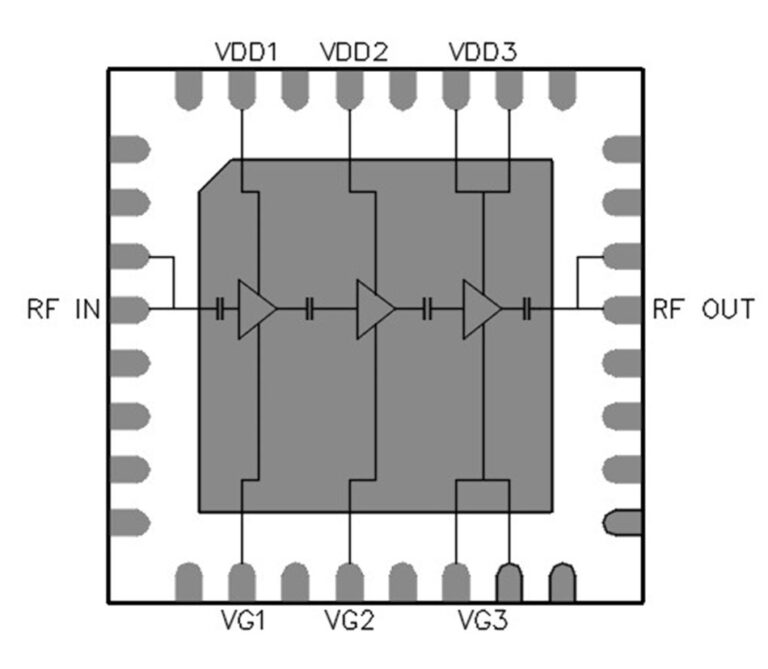

Block diagram of a three-stage RF amplifier in a QFN package, showing RF IN, RF OUT, VDD1-VDD3 and VG1-VG3 pins

MMG-446040-M5 Diagram

Need more information? Contact us here

Quick Product Selector

Find the part you need for your application using our product selector.

View Full Product Selector

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMG-121543-S5

MMG-121543-S5 20 Watt 1.2-1.5 GHz GaN Power Amplifier

Key Features

Frequency (GHz): 1.2 - 1.5
Band: L-band
DC Power to maintain IM3 (W): 20
Gain (dB): 28.5
Psat (dBm): 43
IRL/ORL (dB): 11 / 13
Package (mm): 5 x 5 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MGA-515844-99

MGA-515844-99 5.1 – 5.8 GHz 25W High Efficiency Linear Power Amplifier

Key Features

Frequency (GHz): 5.1 - 5.8
Gain (dB): 16
Gain Flatness (dB): 1
IRL/ORL (dB): 10 / 12
Pout @ -3 dB (dBm): 44
Pout @ 2.5% EVM: 35
Vdd (V): 28
Bias Current (mA): <2000
Package: 99

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MGA-718540-HP3

MGA-718540-HP3 7.1 – 8.5 GHz 10W High Efficiency GaN Power Amplifier

Key Features

Frequency (GHz): 7.1 - 8.5
Gain (dB): 14
Gain Flatness (dB): 1
IRL/ORL (dB): 10 / 7
Pout @ -3 dB (dBm): 42
Vdd (V): 28
Bias Current (mA): 1300
Package: HP3

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MGA-718544-HP3

MGA-718544-HP3 7.1 – 8.5 GHz 25W GaN Power Amplifier

Key Features

Frequency (GHz): 7.1 - 8.5
Gain (dB): 13.5
Gain Flatness (dB): 1
IRL/ORL (dB): 4.5 / 6
Pout @ -3 dB (dBm): 44
Vdd (V): 28
Bias Current (mA): 2400
Package: HP3

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MGA-495940-02

MGA-495940-02 4.4 – 5.9 GHz 10W High Efficiency Linear Power Amplifier

Key Features

Frequency (GHz): 4.9 - 5.9
Gain (dB): 14
Gain Flatness (dB): 1
IRL/ORL (dB): 8 / 8
Pout @ -3 dB (dBm): 40
Pout @ 2.5% EVM: 33
Vdd (V): 28
Bias Current (mA): 100 - 400
Package: 2

Explore
