MMG-121543-S5

20 Watt 1.2-1.5 GHz GaN Power Amplifier

Pre-Production

GaN High Power Amplifiers

MMG-121543-S5

20 Watt 1.2-1.5 GHz GaN Power Amplifier

The MMG-121543-S5 is a high performance Gallium Nitride (GaN) power amplifier. The MMG-121543-S5 provides >20W of saturated output power, 50% poweradded efficiency and 24.5 dB of large-signal gain between 1.2 GHz and 1.5 GHz. The RF input and RF output are matched to 50 ohms. Ideal applications include wireless mesh networks, point-to-point microwave data links, military wireless communications, telemetry, and avionics.

Download Datasheet

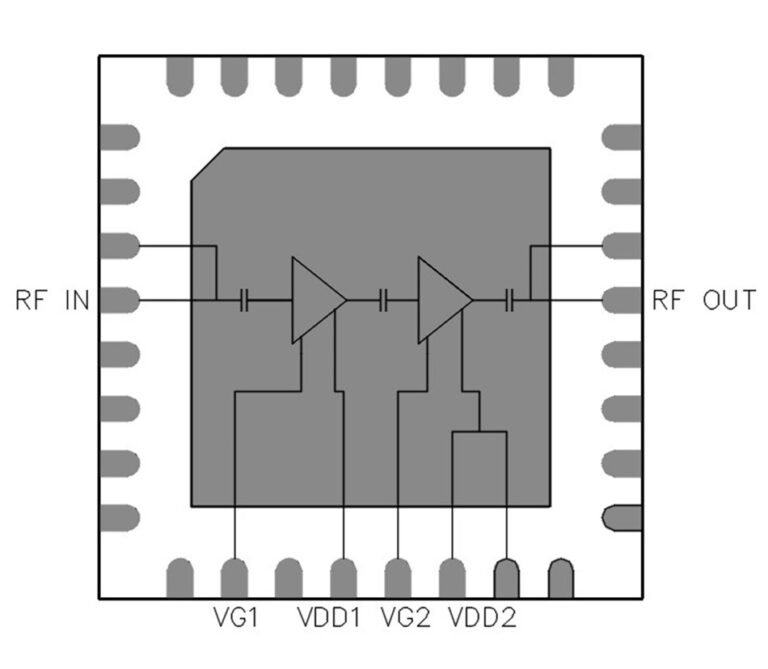

Block diagram of a two-stage RF amplifier in a QFN package, showing RF IN and RF OUT either side of two cascaded amplifier stages

MMG-121543 Diagram

Need more information? Contact us here

Quick Product Selector

Find the part you need for your application using our product selector.

View Full Product Selector

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMG-121543-S5

MMG-121543-S5 20 Watt 1.2-1.5 GHz GaN Power Amplifier

Key Features

Frequency (GHz): 1.2 - 1.5
Band: L-band
DC Power to maintain IM3 (W): 20
Gain (dB): 28.5
Psat (dBm): 43
IRL/ORL (dB): 11 / 13
Package (mm): 5 x 5 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MGA-515844-99

MGA-515844-99 5.1 – 5.8 GHz 25W High Efficiency Linear Power Amplifier

Key Features

Frequency (GHz): 5.1 - 5.8
Gain (dB): 16
Gain Flatness (dB): 1
IRL/ORL (dB): 10 / 12
Pout @ -3 dB (dBm): 44
Pout @ 2.5% EVM: 35
Vdd (V): 28
Bias Current (mA): <2000
Package: 99

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MGA-718540-HP3

MGA-718540-HP3 7.1 – 8.5 GHz 10W High Efficiency GaN Power Amplifier

Key Features

Frequency (GHz): 7.1 - 8.5
Gain (dB): 14
Gain Flatness (dB): 1
IRL/ORL (dB): 10 / 7
Pout @ -3 dB (dBm): 42
Vdd (V): 28
Bias Current (mA): 1300
Package: HP3

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MGA-718544-HP3

MGA-718544-HP3 7.1 – 8.5 GHz 25W GaN Power Amplifier

Key Features

Frequency (GHz): 7.1 - 8.5
Gain (dB): 13.5
Gain Flatness (dB): 1
IRL/ORL (dB): 4.5 / 6
Pout @ -3 dB (dBm): 44
Vdd (V): 28
Bias Current (mA): 2400
Package: HP3

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MGA-495940-02

MGA-495940-02 4.4 – 5.9 GHz 10W High Efficiency Linear Power Amplifier

Key Features

Frequency (GHz): 4.9 - 5.9
Gain (dB): 14
Gain Flatness (dB): 1
IRL/ORL (dB): 8 / 8
Pout @ -3 dB (dBm): 40
Pout @ 2.5% EVM: 33
Vdd (V): 28
Bias Current (mA): 100 - 400
Package: 2

Explore
