MGA-718540-HP3

7.1 – 8.5 GHz 10W High Efficiency GaN Power Amplifier

GaN High Power Amplifiers

MGA-718540-HP3

7.1 – 8.5 GHz 10W High Efficiency GaN Power Amplifier

The MGA-718540-HP3 is a 10W GaN power amplifier. Operating from 7.1 GHz to 8.5 GHz, the amplifier’s CW RF power output is 10W typical and PAE of 40%. The amplifier’s RF input and output are matched to 50 Ω. External bias tees are required. The OIP3 is 54 dBm (34 dBm per tone). The MGA-718540-HP3 packaged base is a solid copper offering superior thermal management. The overall Rth is 3.3℃/W.

Download Datasheet

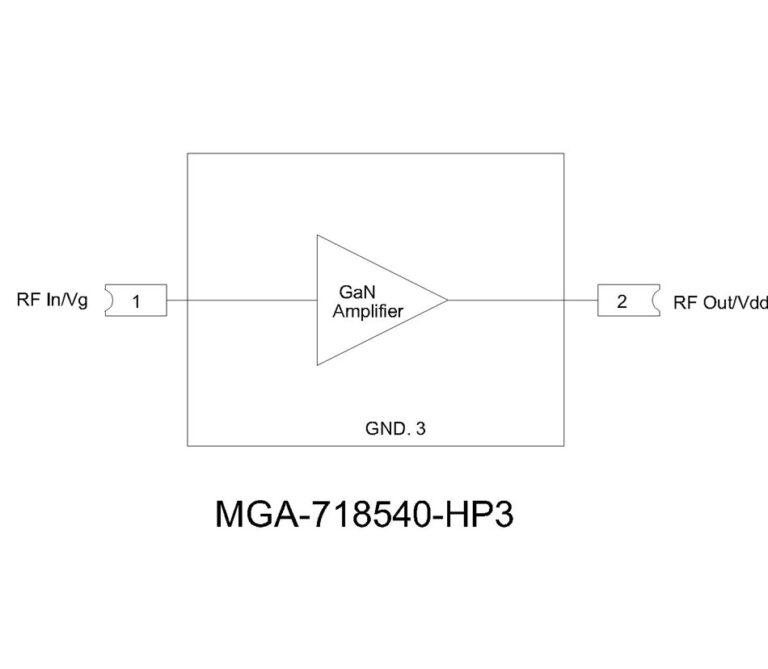

Block diagram of the MGA-718540-HP3 GaN amplifier chip, labelled with RF In/Vg, RF Out/Vdd and GND pins

MGA-718540-HP3 Diagram

Need more information? Contact us here

Quick Product Selector

Find the part you need for your application using our product selector.

View Full Product Selector

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMG-121543-S5

MMG-121543-S5 20 Watt 1.2-1.5 GHz GaN Power Amplifier

Key Features

Frequency (GHz): 1.2 - 1.5
Band: L-band
DC Power to maintain IM3 (W): 20
Gain (dB): 28.5
Psat (dBm): 43
IRL/ORL (dB): 11 / 13
Package (mm): 5 x 5 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MGA-515844-99

MGA-515844-99 5.1 – 5.8 GHz 25W High Efficiency Linear Power Amplifier

Key Features

Frequency (GHz): 5.1 - 5.8
Gain (dB): 16
Gain Flatness (dB): 1
IRL/ORL (dB): 10 / 12
Pout @ -3 dB (dBm): 44
Pout @ 2.5% EVM: 35
Vdd (V): 28
Bias Current (mA): <2000
Package: 99

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MGA-718540-HP3

MGA-718540-HP3 7.1 – 8.5 GHz 10W High Efficiency GaN Power Amplifier

Key Features

Frequency (GHz): 7.1 - 8.5
Gain (dB): 14
Gain Flatness (dB): 1
IRL/ORL (dB): 10 / 7
Pout @ -3 dB (dBm): 42
Vdd (V): 28
Bias Current (mA): 1300
Package: HP3

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MGA-718544-HP3

MGA-718544-HP3 7.1 – 8.5 GHz 25W GaN Power Amplifier

Key Features

Frequency (GHz): 7.1 - 8.5
Gain (dB): 13.5
Gain Flatness (dB): 1
IRL/ORL (dB): 4.5 / 6
Pout @ -3 dB (dBm): 44
Vdd (V): 28
Bias Current (mA): 2400
Package: HP3

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MGA-495940-02

MGA-495940-02 4.4 – 5.9 GHz 10W High Efficiency Linear Power Amplifier

Key Features

Frequency (GHz): 4.9 - 5.9
Gain (dB): 14
Gain Flatness (dB): 1
IRL/ORL (dB): 8 / 8
Pout @ -3 dB (dBm): 40
Pout @ 2.5% EVM: 33
Vdd (V): 28
Bias Current (mA): 100 - 400
Package: 2

Explore
