MMA-174321-M4
17 – 43GHz, 0.1W Gain Block
Gain Blocks
MMA-174321-M4
17 – 43GHz, 0.1W Gain Block
The MMA-174321 is a broadband GaAs MMIC general purpose gain block for 0.1-Watt maximum output power and high gain over full 17 to 43GHz frequency range. This amplifier is able to use as 2x and 3x Frequency multipliers when biased under class-B condition for the first stage.

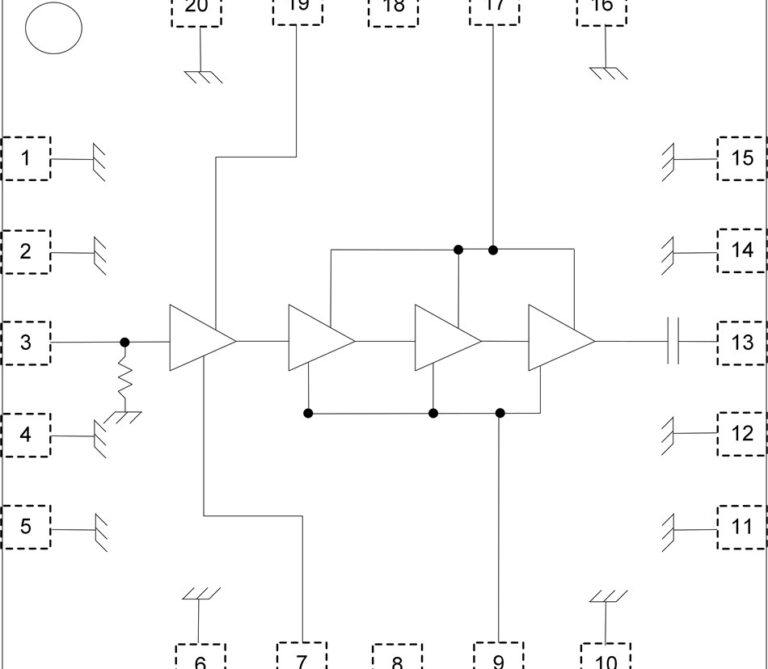

MMA-174321-M4 Diagram
Need more information? Contact us here
Features of the MMA-174321-M4 17 - 43GHz, 0.1W Gain Block include:
- Frequency Range: 17 – 43 GHz
- P1dB: 18 dBm
- Psat: 20 dBm
- Gain: 21 dB
- Vdd =4.5 V (3 V to 5 V)
- Ids = 250 mA (150mA to 300mA)
- Input and Output Fully Matched to 50 Ω
- 2x and 3x Frequency multiplier applications
- Surface Mount, RoHs Compliant QFN 4x4mm package
Applications the MMA-174321-M4 17 - 43GHz, 0.1W Gain Block can be used for:
- Communication systems
- Microwave instrumentations
