MMA-062020
6-22GHz, 0.1W Gain Block
Gain Blocks
MMA-062020
6-22GHz, 0.1W Gain Block
The MMA-062020 is a broadband GaAs MMIC general purpose gain block for 20dBm saturated maximum output power and high gain over full 6 to 22GHz frequency range. This amplifier was optimally designed for broadband applications requiring flat gain with excellent input and output port matches.

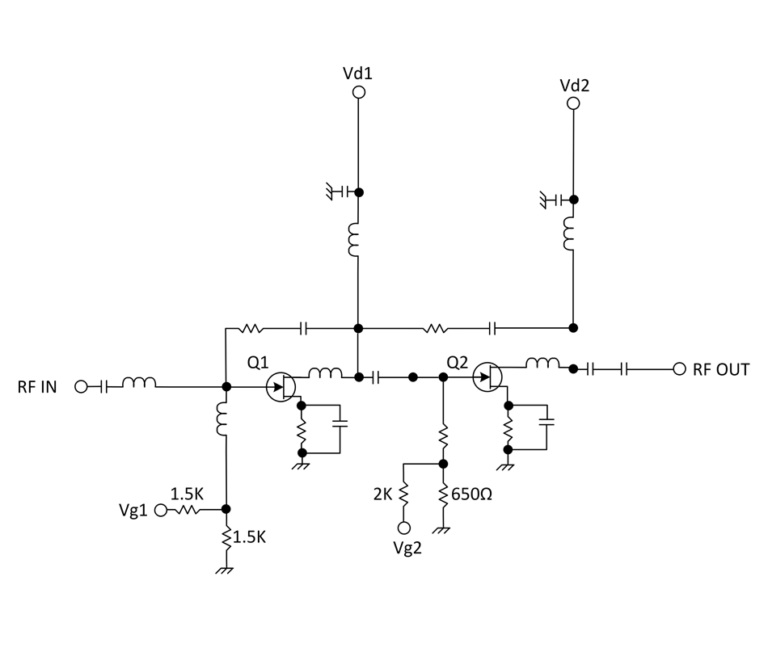

MMA-062020 Diagram
Need more information? Contact us here
Features of the MMA-062020 6-22GHz, 0.1W Gain Block include:
- Frequency Range: 6 – 22 GHz
- P1dB: 18.5 dBm @Vds=5V
- Psat: 19.5 dBm @
- Gain: 14 dB
- Vdd =3 to 6 V
- Ids = 130 mA
- Input and Output Fully Matched to 50 Ω
Applications the MMA-062020 6-22GHz, 0.1W Gain Block can be used for:
- Communication systems
- Microwave instrumentations
- ECM
