MMA-011015

1 – 10 GHz GaAs MMIC Medium Power Amplifier

Gain Blocks

MMA-011015

1 – 10 GHz GaAs MMIC Medium Power Amplifier

The MMA-011015 is a 1 – 10GHz broadband medium power amplifier realized in advanced GaAs PHEMT technology. With on-chip input/output blocking capacitors and DC supply RF choke circuitry, it requires only three bonds for DC bias and RF-connections. It is unconditionally stable and directly cascadable with other stages. The MMA-011015 can be DC and RF tested and screened on-wafer to insure the performance.

Download Datasheet

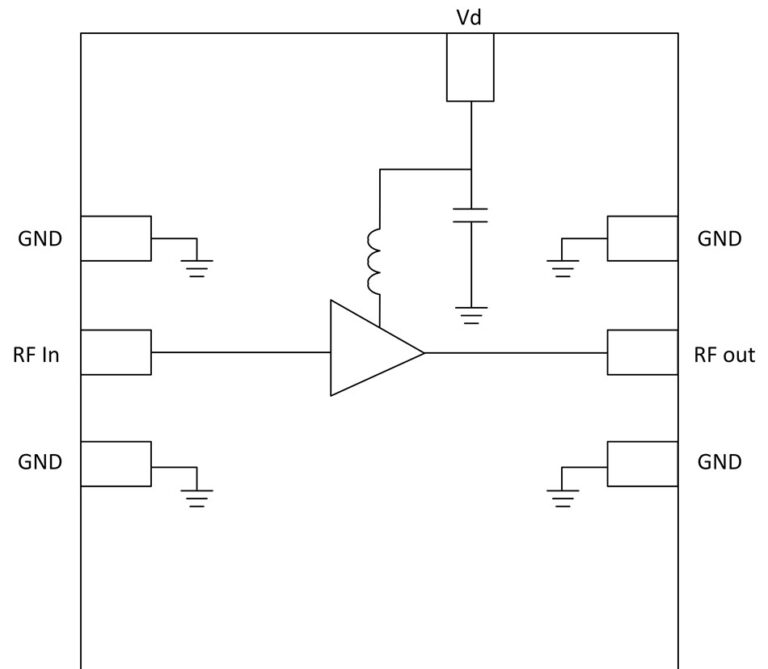

Simplified pinout diagram of a single-stage RF amplifier, showing GND, RF In and RF out pins either side of the amplifier, with a Vd bias inductor-capacitor network

MMA-011015 Diagram

Need more information? Contact us here

Quick Product Selector

Find the part you need for your application using our product selector.

View Full Product Selector

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-062020-C3

MMA-062020-C3 6-22GHz, 0.1W Gain Block

Key Features

Frequency (GHz): 6 - 22
Gain (dB): 14.0
P1dB (dBm): 18.5
IRL/ORL (dB): 8 / 10
OIP3 (dBm): 28.0
Voltage (V): 3 - 6
Bias Current (mA): 130
Package (mm): 3×3 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-011015-C3

MMA-011015-C3 1 - 10 GHz Fully Matched Driver Amplifier

Key Features

Frequency (GHz): 1 - 10
Gain (dB): 15.0
P1dB (dBm): 16.0
IRL/ORL (dB): 12 / 15
NF (dB): 4.5
Voltage (V): 6
Bias Current (mA): 75
Package (mm): 3×3 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-062020

MMA-062020 6-22GHz, 0.1W Gain Block

Key Features

Frequency (GHz): 6 - 20
Gain (dB): 14.0
P1dB (dBm): 18.3
IRL/ORL (dB): 8 / 10
OIP3 (dBm): 28.0
Voltage (V): 3 - 6
Bias Current (mA): 120
Package (mm): Die

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-011015

MMA-011015 1 - 10 GHz GaAs MMIC Medium Power Amplifier

Key Features

Frequency (GHz): 1 - 10
Gain (dB): 15.0
P1dB (dBm): 16.0
IRL/ORL (dB): 12 / 15
NF (dB): 4.5
Voltage (V): 6
Bias Current (mA): 75
Package (mm): Die

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-174321

MMA-174321 17-43GHz, 0.1W Gain Block

Key Features

Frequency (GHz): 17 - 43
Gain (dB): 21.0
P1dB (dBm): 18.0
IRL/ORL (dB): 8 / 8
OIP3 (dBm): 26.0
Voltage (V): 3 - 5
Bias Current (mA): 150 - 250
Package (mm): Die

Explore
