MMA-020624-M4

2000-6000 MHz Fully Matched High Dynamic Range Amplifier

Driver Amplifiers

MMA-020624-M4

2000-6000 MHz Fully Matched High Dynamic Range Amplifier

The MMA-020624-M4 is a high linearity GaAs MESFET MMIC amplifier utilizing MwT’s proprietary linear device technology. It is in a LCC lead-frame package. Applications include the driver amplifiers in 3G cellular and WiMax/WLAN infrastructure base stations, access points and gain-block amplifiers in 2-6 Ghz range. The third order intercept performance of the MMA-020624-M4 is excellent, typically 15 dB above the Output power at 1 dB gain compression point. It provides +25 dBm P1dB, +40 dBm OIP3, +18.5 dBm Pave @ 2.5% EVM under 802.16/64 QAM input signal and 17 dB gain.

Download Datasheet

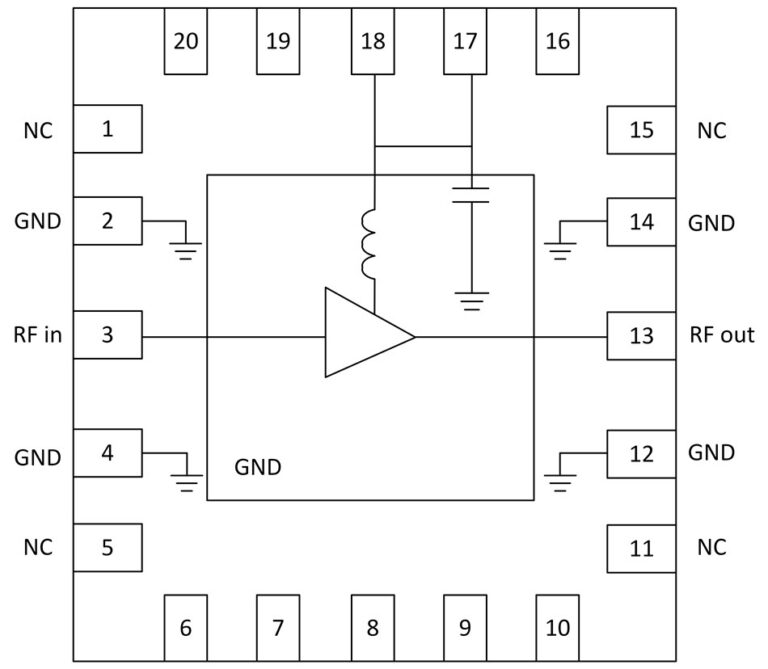

Pinout diagram of a single-stage RF amplifier in a 20-pin package, showing an inductor-capacitor bias network at pins 17 and 18 alongside RF in and RF out

MMA-020624-M4 Diagram

Need more information? Contact us here

Quick Product Selector

Find the part you need for your application using our product selector.

View Full Product Selector

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

CMX90A702

CMX90A702 28 GHz 5G Medium Power Amplifier

Key Features

Frequency (GHz): 26.5 - 29.5
Gain (dB): 21
IRL/ORL (dB): 10 / 7
P1dB (dBm): 25
OIP3 (dBm): 32.5
Voltage (V): 4
Bias Current (mA): 182
Package (mm): 4x4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-020624

MMA-020624 2000-6000 MHz Fully Matched High Dynamic Range Amplifier

Key Features

Frequency (GHz): 2 - 6
Gain (dB): 17
IRL/ORL (dB): 12 / 12
NF (dB): 3.5
P1dB (dBm): 25
OIP3 (dBm): 40
Voltage (V): 8
Bias Current (mA): 250
Package (mm): Die

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-020624-M4

MMA-020624-M4 2000-6000 MHz Fully Matched High Dynamic Range Amplifier

Key Features

Frequency (GHz): 2 - 6
Gain (dB): 17
IRL/ORL (dB): 12 / 12
NF (dB): 3.5
P1dB (dBm): 25
OIP3 (dBm): 40
Voltage (V): 8
Bias Current (mA): 250
Package (mm): 4x4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-053223-M4

MMA-053223-M4 500-3200 MHz Fully Matched High Dynamic Range Amplifier

Key Features

Frequency (GHz): 0.5 - 3.2
Gain (dB): 12
IRL/ORL (dB): 10 / 10
NF (dB): 3
P1dB (dBm): 24
OIP3 (dBm): 42
Voltage (V): 6
Bias Current (mA): 120
Package (mm): 4x4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-054025-M4

MMA-054025-M4 500-4000 MHz Fully Matched High Dynamic Range Amplifier

Key Features

Frequency (GHz): 0.5 - 4
Gain (dB): 11
IRL/ORL (dB): 10 / 10
NF (dB): 3.5
P1dB (dBm): 25
OIP3 (dBm): 44
Voltage (V): 7.5
Bias Current (mA): 300
Package (mm): 4x4 QFN

Explore
