MMA-020624

2000-6000 MHz Fully Matched High Dynamic Range Amplifier

Driver Amplifiers

MMA-020624

2000-6000 MHz Fully Matched High Dynamic Range Amplifier

The MMA-020624 is a high linearity GaAs FET broadband MMIC die amplifier utilizing MwT’s proprietary linear device technology. Applications include the driver amplifiers in 3G cellular and WiMax/WLAN infrastructure base stations and access points. The third order intercept performance of the MMA-020624 is excellent, typically 15 dB above the 1 dB gain compression point.

Download Datasheet

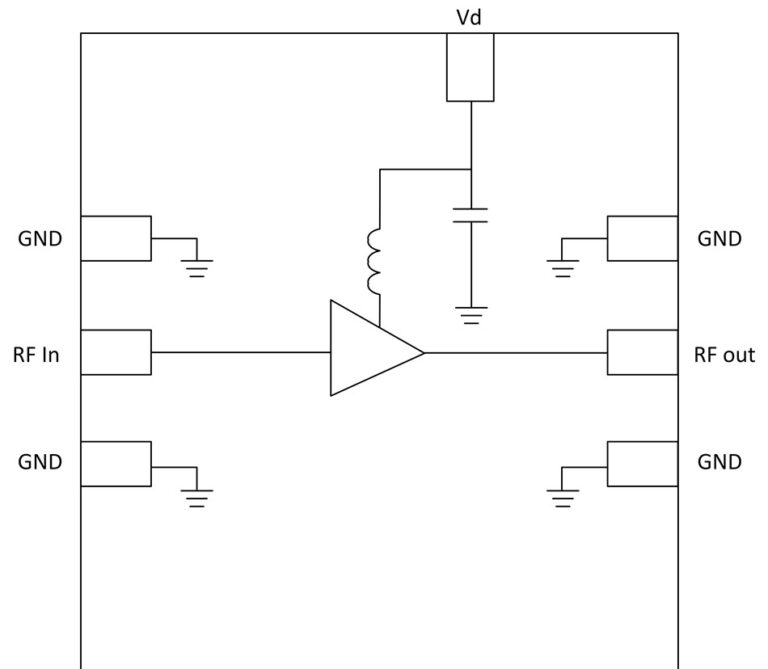

Simplified pinout diagram of a single-stage RF amplifier, showing GND, RF In and RF out pins either side of the amplifier, with a Vd bias inductor-capacitor network

MMA-020624 Diagram

Need more information? Contact us here

Quick Product Selector

Find the part you need for your application using our product selector.

View Full Product Selector

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

CMX90A702

CMX90A702 28 GHz 5G Medium Power Amplifier

Key Features

Frequency (GHz): 26.5 - 29.5
Gain (dB): 21
IRL/ORL (dB): 10 / 7
P1dB (dBm): 25
OIP3 (dBm): 32.5
Voltage (V): 4
Bias Current (mA): 182
Package (mm): 4x4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-020624

MMA-020624 2000-6000 MHz Fully Matched High Dynamic Range Amplifier

Key Features

Frequency (GHz): 2 - 6
Gain (dB): 17
IRL/ORL (dB): 12 / 12
NF (dB): 3.5
P1dB (dBm): 25
OIP3 (dBm): 40
Voltage (V): 8
Bias Current (mA): 250
Package (mm): Die

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-020624-M4

MMA-020624-M4 2000-6000 MHz Fully Matched High Dynamic Range Amplifier

Key Features

Frequency (GHz): 2 - 6
Gain (dB): 17
IRL/ORL (dB): 12 / 12
NF (dB): 3.5
P1dB (dBm): 25
OIP3 (dBm): 40
Voltage (V): 8
Bias Current (mA): 250
Package (mm): 4x4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-053223-M4

MMA-053223-M4 500-3200 MHz Fully Matched High Dynamic Range Amplifier

Key Features

Frequency (GHz): 0.5 - 3.2
Gain (dB): 12
IRL/ORL (dB): 10 / 10
NF (dB): 3
P1dB (dBm): 24
OIP3 (dBm): 42
Voltage (V): 6
Bias Current (mA): 120
Package (mm): 4x4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-054025-M4

MMA-054025-M4 500-4000 MHz Fully Matched High Dynamic Range Amplifier

Key Features

Frequency (GHz): 0.5 - 4
Gain (dB): 11
IRL/ORL (dB): 10 / 10
NF (dB): 3.5
P1dB (dBm): 25
OIP3 (dBm): 44
Voltage (V): 7.5
Bias Current (mA): 300
Package (mm): 4x4 QFN

Explore
