MMA-012030-M4

MMA-012030-M4

Distributed Amplifiers

MMA-012030-M4

MMA-012030-M4

The MMA-012030-M4 is a broadband GaAs MMIC Traveling Wave Amplifier (TWA) with high output power and high gain over 0.1 to 20GHz frequency range. This amplifier is optimally designed for broadband high power applications requiring flat gain and high output power with excellent input and output matches over a 0.1 to 20GHz frequency range.

Download Datasheet

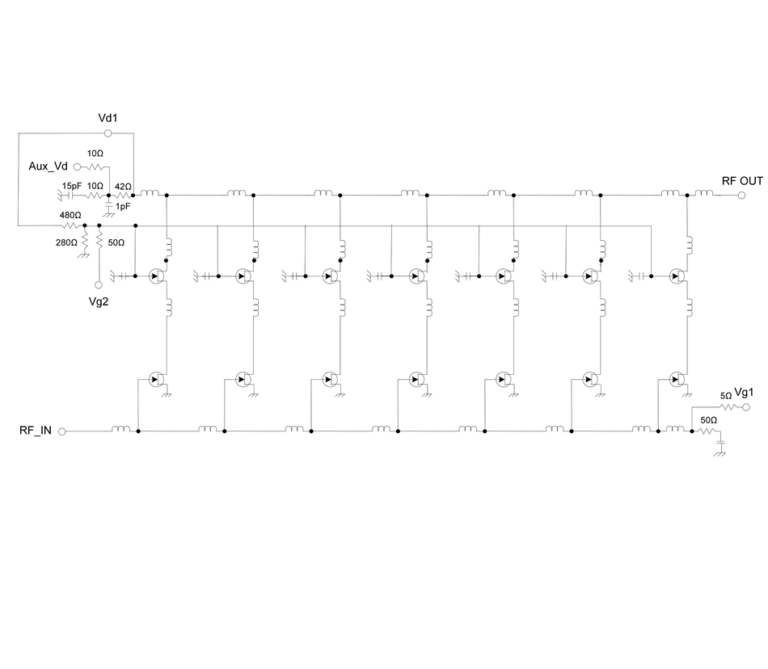

Transistor-level schematic of a seven-stage distributed RF amplifier, showing RF_IN and RF OUT transmission lines and Vd1, Vg1, Vg2 and Aux_Vd bias networks with labelled resistor and capacitor values

MMA-012030-M4

Need more information? Contact us here

Quick Product Selector

Find the part you need for your application using our product selector.

View Full Product Selector

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-005022-M4

MMA-005022-M4 30KHz-50GHz Traveling Wave Amplifier

Key Features

Frequency (GHz): 30 kHz – 50
Gain (dB): 13.5
P1dB (dBm): 22
P3dB (dBm): 25
Gain Flatness (dB): +/- 2.0
OIP3 (dBm): 30
IRL/ORL (dB): 10 / 10
Voltage (V): 7
Package (mm): 4X4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-005022B

MMA-005022B 30KHz-50GHz Traveling Wave Amplifier

Key Features

Frequency (GHz): 30 kHz – 50
Gain (dB): 13.5
P1dB (dBm): 22
P3dB (dBm): 25
Gain Flatness (dB): +/- 1.0
OIP3 (dBm): 30
IRL/ORL (dB): 15 / 15
Voltage (V): 7
Package (mm): Die

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-012030

MMA-012030 0.1-20GHz 1W Traveling Wave Amplifier

Key Features

Frequency (GHz): 0.1 - 20
Gain (dB): 12.5
P1dB (dBm): 27
P3dB (dBm): 29
Gain Flatness (dB): +/- 0.5
OIP3 (dBm): 37
IRL/ORL (dB): 10 / 10
Voltage (V): 12
Package (mm): Die

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-012030-M4

MMA-012030-M4

Key Features

Frequency (GHz): 0.1 - 20
Gain (dB): 12.5
P1dB (dBm): 27
P3dB (dBm): 29
Gain Flatness (dB): +/- 0.5
OIP3 (dBm): 37
IRL/ORL (dB): 10 / 10
Voltage (V): 12
Package (mm): 4X4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-012727

MMA-012727 0.1-26.5GHz 0.5W Traveling Wave Amplifier

Key Features

Frequency (GHz): 0.1 - 26.5
Gain (dB): 12.5
P1dB (dBm): 26
P3dB (dBm): 27
Gain Flatness (dB): +/- 0.5
OIP3 (dBm): 35
IRL/ORL (dB): 11 / 11
Voltage (V): 8 - 12
Package (mm): Die

Explore
