MMA-005022B

30KHz-50GHz Traveling Wave Amplifier

Distributed Amplifiers

MMA-005022B

30KHz-50GHz Traveling Wave Amplifier

The MMA-005022B is a broadband GaAs MMIC Traveling Wave Amplifier (TWA) with medium output power and high gain over full 30KHz to 50GHz frequency range. This amplifier is optimally designed for broadband applications requiring flat gain and group delay with excellent input and output matches over a 30KHz to 50GHz frequency range.

Download Datasheet

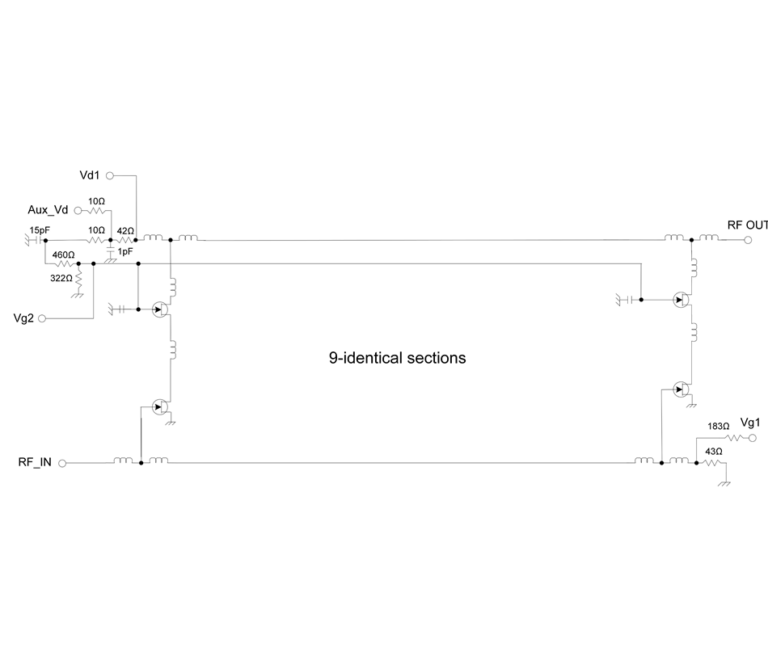

Schematic diagram of a multi-stage RF power amplifier with 9 identical sections, labelled with Vd1, Aux_Vd, Vg1, Vg2 bias inputs, RF_IN and RF OUT

MMA-005022B Diagram

Need more information? Contact us here

Quick Product Selector

Find the part you need for your application using our product selector.

View Full Product Selector

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-005022-M4

MMA-005022-M4 30KHz-50GHz Traveling Wave Amplifier

Key Features

Frequency (GHz): 30 kHz – 50
Gain (dB): 13.5
P1dB (dBm): 22
P3dB (dBm): 25
Gain Flatness (dB): +/- 2.0
OIP3 (dBm): 30
IRL/ORL (dB): 10 / 10
Voltage (V): 7
Package (mm): 4X4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-005022B

MMA-005022B 30KHz-50GHz Traveling Wave Amplifier

Key Features

Frequency (GHz): 30 kHz – 50
Gain (dB): 13.5
P1dB (dBm): 22
P3dB (dBm): 25
Gain Flatness (dB): +/- 1.0
OIP3 (dBm): 30
IRL/ORL (dB): 15 / 15
Voltage (V): 7
Package (mm): Die

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-012030

MMA-012030 0.1-20GHz 1W Traveling Wave Amplifier

Key Features

Frequency (GHz): 0.1 - 20
Gain (dB): 12.5
P1dB (dBm): 27
P3dB (dBm): 29
Gain Flatness (dB): +/- 0.5
OIP3 (dBm): 37
IRL/ORL (dB): 10 / 10
Voltage (V): 12
Package (mm): Die

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-012030-M4

MMA-012030-M4

Key Features

Frequency (GHz): 0.1 - 20
Gain (dB): 12.5
P1dB (dBm): 27
P3dB (dBm): 29
Gain Flatness (dB): +/- 0.5
OIP3 (dBm): 37
IRL/ORL (dB): 10 / 10
Voltage (V): 12
Package (mm): 4X4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

MMA-012727

MMA-012727 0.1-26.5GHz 0.5W Traveling Wave Amplifier

Key Features

Frequency (GHz): 0.1 - 26.5
Gain (dB): 12.5
P1dB (dBm): 26
P3dB (dBm): 27
Gain Flatness (dB): +/- 0.5
OIP3 (dBm): 35
IRL/ORL (dB): 11 / 11
Voltage (V): 8 - 12
Package (mm): Die

Explore
