CMX7341
Marine Common Platform Processor
CMX7341
Marine Common Platform Processor

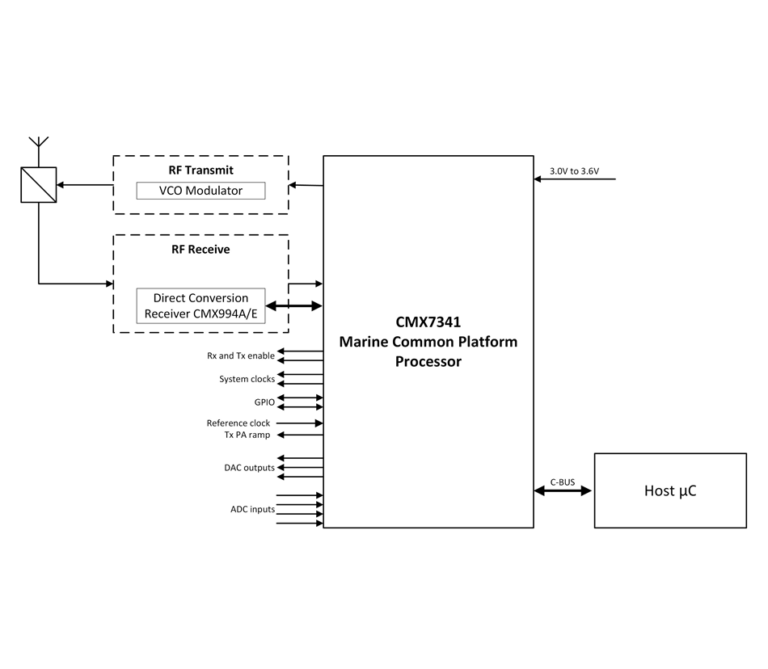

The CMX7341 provides a common platform that can deliver marine radio solutions based on a configurable baseband processor with direct connection to an I/Q based RF receiver. The chip-set comprising CMX7341 Marine Common Platform Processor + CMX994A Direct Conversion Receiver (DCRx) enables a high integration and cost-effective radio solutions to be realised.
The Function Image can be downloaded from the CML Technical Portal (contact for access):
- CMX7341 FI-6.x – MoB Marine DSC and AIS Modem with Rx I/Q Support
Devices are available through our Distributor Network.
Features of the CMX7341 Marine Common Platform Processor include:
- Common Platform Processors
- DSC Transmit Modem
- DSC Receive Modem
- AIS Transmit Modem
- Tx Sequencer
- Direct control of CMX994A
- IEC 62369 Ed 1 compliant
- 2 Auxiliary ADCs (4 Multiplexed Inputs)
- 4 Auxiliary DACs (including RAMDAC)2 Auxiliary System Clock Outputs
- Tx Outputs for Two-point modulation
- Rx Inputs for CMX994 Direct Conversion (I/Q) Receiver
Man-OverBoard Test/Example Script
A Man-OverBoard Example Script for the PE0403. A EV9942A (CMX994A Direct Conversion Receiver) and PE0003 are required for the test system. See the script header text for connection and configuration of the Evaluation Kits and message flow. This script will only operate with CMX7341 FI-6.1.0.2 or later. Version 1.0.
|
PE0003
|
The PE0003 Evaluation Kit Interface Card is a global interface system for use with evaluation kits for CML’s new generation ICs, including FirmASIC™ based products. This greatly simplifies the approach to the evaluation and design-in process. |
Knowledge Base |
| PE0403
|
The PE0403 Platform Evaluation Kit is designed to assist in the evaluation and application development of the CMX724x and CMX734x ranges of FirmASIC® products. |
Knowledge Base
PE0403 724x Board Schematics. – Download PE0403-734x Board Schematics. – Download PE0403-7241 PE0403-7341 Quick Start. A simple guide to help users get started evaluating with the PE0403-7241 and PE0403-7341. – Download PE0403-7341 Quick Start. A simple guide to help users get started evaluating the CMX7341 using a Direct Conversion Receiver, the CMX994E, as an analogue PMR receiver. Kits required: PE0403-7341, EV9942E and PE0003.- Download C-BUS Guides. Guides to operation and interfacing. – Download |
| EV9942A/9942E |
Two versions of the Evaluation Kit are available allowing the user to investigate all aspects of the chosen CMX994, high-performance direct conversion receiver. A common PC-based application identifies the CMX994 version and starts an interactive GUI for configuration and control. A separate hi-res schematic is available for both versions of the EV9942. |
Knowledge Base |
