MMA-121633-M5
12.5-15.5GHz, 2W Power Amplifier
mmWave Amplifiers
MMA-121633-M5
12.5-15.5GHz, 2W Power Amplifier
The MMA-121633 is a GaAs MMIC linear power amplifier with 2-Watt output power and high gain over full 12.5 to 15.5GHz frequency range. This amplifier was optimally designed for high linearity applications at 5dB back-off from P-1 condition.

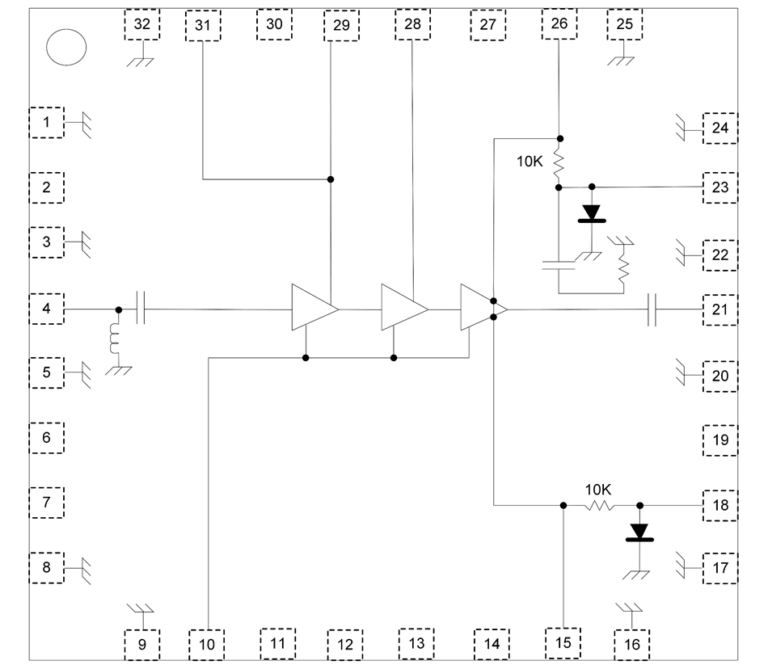

MMA-121633-M5 Diagram
Need more information? Contact us here
Features of the MMA-121633-M5 12.5-15.5GHz, 2W Power Amplifier include:
- Frequency Range: 12.5 – 15.5 GHz
- P1dB: 32 dBm
- IM3 Level -44dBc @Po=20dBm/tone
- Gain: 23.5 dB
- Vdd =4 to 6 V
- Ids = 1200 to 2500 mA
- Input and Output Fully Matched to 50 Ω
- Integrated RF power detector
- Surface Mount, RoHs Compliant QFN 5x5mm package
Applications the MMA-121633-M5 12.5-15.5GHz, 2W Power Amplifier can be used for:
- Communication systems
- Microwave instrumentations
- Point to Point Radios
