CMX90A009

10W 136 – 1000 MHz Power Amplifier

Sub-GHz Amplifiers

CMX90A009

10W 136 – 1000 MHz Power Amplifier

The CMX90A009 is a high efficiency single-stage GaAs HBT power amplifier in thermally enhanced DFN package, delivering +40.0 dBm (10 W) of output power with >60 % efficiency at 435 MHz and 7.4 V.

CMX90A009 requires external matching at both input and output to optimize performance for each application and frequency band.

Wide supply voltage range of 6 – 9.5 V make it suitable for dual-cell Lithium batteries and on-chip active bias maintains operation over temperature.

CMX90A009 is intended as the output stage in a high-power amplifier, combined with CMX90A007 driver to provide a complete line-up solution. Support for complex modulation such as π/4 DQPSK and QAM can be achieved with CMX998 Cartesian feedback loop IC.

Download Datasheet

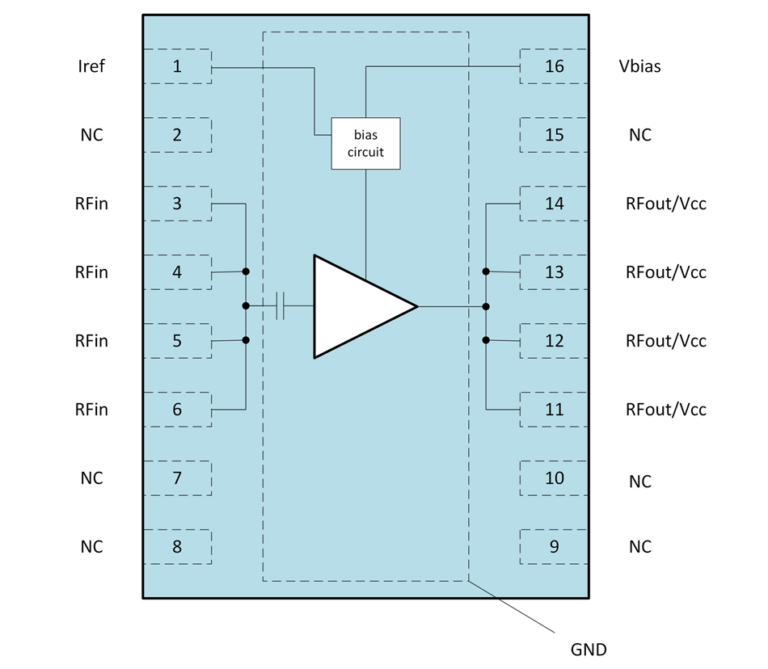

Block diagram of the CMX90A009 chip in a 16-pin package, showing an amplifier with four RFin and four RFout/Vcc pins, a bias circuit, Iref, Vbias, GND and NC pins

CMX90A009 Block Diagram

Need more information? Contact us here

Quick Product Selector

Find the part you need for your application using our product selector.

View Full Product Selector

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

CMX90A003

CMX90A003 1W 860 – 960 MHz Power Amplifier

Key Features

Frequency (MHz): 860 - 960
Gain (dB): 30
Psat (dBm): 29.5
Efficiency (%): 49%
Voltage (V): 1.9 - 3.0
Bias Current (mA): 70
RF Match: Int / Int
Package (mm): 4×4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

CMX90A004

CMX90A004 2W 860 –960 MHz Power Amplifier

Key Features

Frequency (MHz): 860 - 960
Gain (dB): 30
Psat (dBm): 32.5
Efficiency (%): 49%
Voltage (V): 2.7 - 4.5
Bias Current (mA): 78
RF Match: Int / Int
Package (mm): 4×4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

CMX90A006

CMX90A006 2W 860-930 MHz Linear PA

Key Features

Frequency (MHz): 860 - 930
Gain (dB): 33
P1dB (dBm): 33
Psat (dBm): 33.5
Efficiency (%): 52%
Voltage (V): 2.5 - 5.25
Bias Current (mA): 206
RF Match: Int / Ext
Package (mm): 4x4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

CMX90A007

CMX90A007 2W 136 – 1000 MHz 2-stage Driver Amplifier

Key Features

Frequency (MHz): 136 - 1000
Gain (dB): 27
Psat (dBm): 33.5
Efficiency (%): 53%
Voltage (V): 6.0 - 9.5
Bias Current (mA): 49.5
RF Match: Ext / Ext
Package (mm): 4x4 QFN

Explore

3D rendered image of a SµRF branded SOIC-8 packaged amplifier chip against a dark circuit-board background

CMX90A009

CMX90A009 10W 136 – 1000 MHz Power Amplifier

Key Features

Frequency (MHz): 136 - 1000
Gain (dB): 17.5
Psat (dBm): 41.5
Efficiency (%): 60%
Voltage (V): 6.0 - 9.5
Bias Current (mA): 136
RF Match: Ext / Ext
Package (mm): 4x5 DFN

Explore
