CMX90A007
2W 136 – 1000 MHz 2-stage Driver Amplifier
CMX90A007
2W 136 – 1000 MHz 2-stage Driver Amplifier

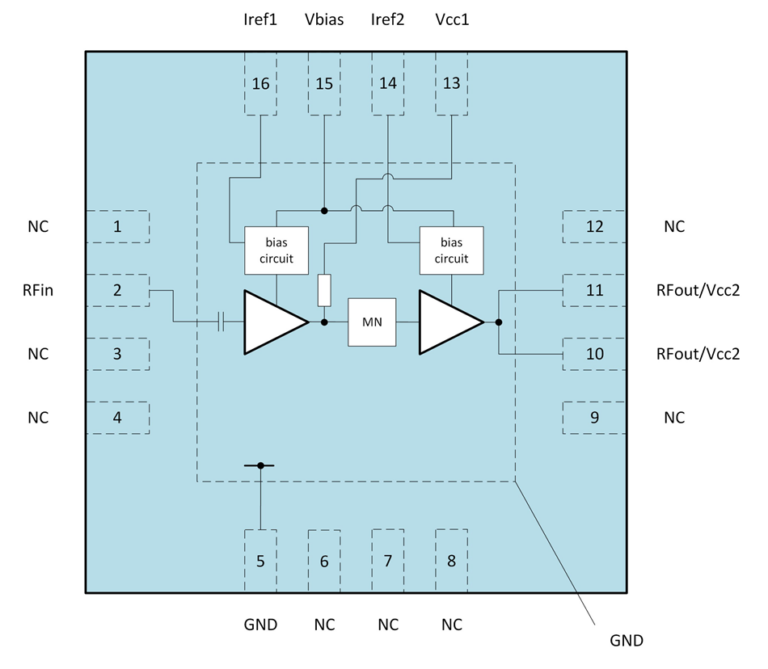

The CMX90A007 is a high gain two-stage GaAs HBT driver amplifier in a plastic QFN package, delivering +33.5 dBm (2.2 W) of output power with >55 % efficiency at 435 MHz and 7.4 V.
CMX90A007 requires external matching at both input and output to optimize performance for each application and frequency band.
Wide supply voltage range of 6 – 9.5 V make it suitable for a variety of applications and enable direct connection to dual-cell Lithium batteries. The integrated active bias circuit and wideband interstage match ease design effort and minimize external components and PCB area.
CMX90A007 can be used as a stand-alone final stage PA or driver stage for the CMX90A009.
Features of the CMX90A007 2W 136 – 1000 MHz 2-stage Driver Amplifier include:
- Frequency range 136 – 1000 MHz
- Supply voltage 6 – 9.5 V
- P3dB +33.5 dBm @ 435MHz, Vcc = 7.4 V
- Small signal gain 26 dB
- High collector efficiency >55 % @ P3dB
- On-chip active bias and interstage match
- Saturated and linear operation
- OIP3 +45 dBm @ +27 dBm/tone @435 MHz
Applications the CMX90A007 2W 136 – 1000 MHz 2-stage Driver Amplifier can be used for:
- Critical communications
- PMR / LMR hand-portable
- Two-way radio (analogue / digital)
- Public safety TETRA / P25
- Wireless data modem / network
- VHF / UHF / 915 MHz ISM band
- Marine radio / AIS
Power Supply Requirements for the CMX90A007 2W 136 – 1000 MHz 2-stage Driver Amplifier:
- 6 – 9.5 V
