CMX969

– Packet Data Modem

Modems

CMX969

– Packet Data Modem

The CMX969 is a CMOS integrated circuit, containing baseband signal processing and Medium Access Control (MAC) functions required for a DataTAC dual mode RD-LAP 19200bps and MDC 4800bps FSK Wireless Packet Data Modem (suitable for use with the Motient/ARDIS network).

It interfaces with the modem host processor and the radio modulation/demodulation circuits, delivering reliable two-way transfer of the data.

The device is programmable to operate from a wide choice of Xtal frequencies and is available in 24 pin PDIP, SSOP and TSSOP packages.

Devices are available through our Distributor Network.

Download Datasheet

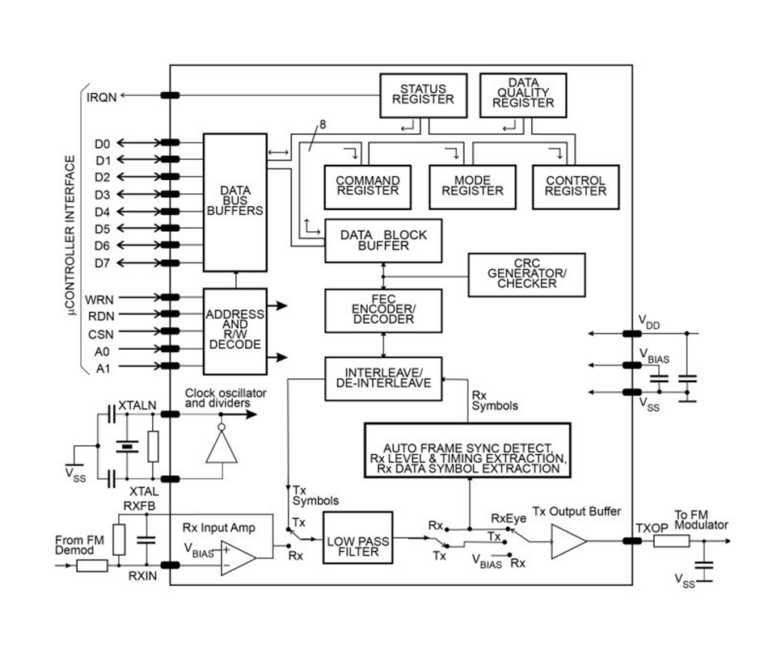

Block diagram of the CMX969 chip, labelled with data bus buffers, status/command/mode/control registers, FEC encoder/decoder, interleave/de-interleave, auto frame sync detect, Rx input amp, clock oscillator and Tx output buffer

Block diagram – CMX969
