SCT3258TD
– DMR/dPMR/Analog Processor – DMR/dPMR/Analog Processor
SCT3258TD
– DMR/dPMR/Analog Processor – DMR/dPMR/Analog Processor
The SCT3258TD is a low power, high performance baseband processor, supporting DMR and dPMR radio protocols. The device embeds the data link layer and much of the call control layer processing of the DMR and dPMR protocol. The use of an external audio codec completes the entire physical layer. In DMR mode it complies with ETSI TS 102 361 and in dPMR mode it complies with ETSI TS 102 490 and ETSI TS 102 658.
Designed to simplify the migration from analog to multi-standard digital/analog radios, the designer can start with a typical analog radio, replacing the analog baseband processor with the SCT3258TD together with an external codec and obtain the base DMR/dPMR and analog radio function. To achieve the full potential of DMR/dPMR, application-level software programming is required on the host processor.
A fully embedded vocoder implementation is included in the device with options for the AMBE+2 and other standard low bit rate vocoders. An external vocoder can also be connected if required.

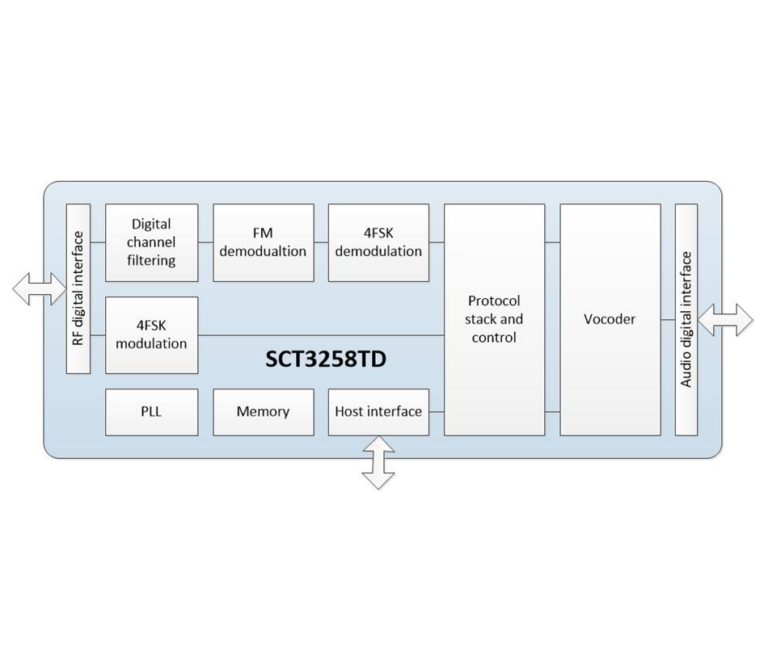

The SCT3258TD contains two high-speed serial ports, a single 8-bit processor interface (HPI) and a 4-pin programmable I/O port. The two serial ports are used to connect to the audio codec and optional external vocoder. Communication with the host processor is via the 8-bit HPI port.
Detailed product support is available including an evaluation kit, application notes, FAQs and reference design material.
Devices are available through our Distributor Network.
Features of the SCT3258TD – DMR/dPMR/Analog Processor SCT3258TD – DMR/dPMR/Analog Processor include:
- Supports Multiple Radio Protocols
- Automatic Digital/analog mode detection
- DMR standard
- Supports dPMR Tier 1, Tier 2
- Air interface Layer 1, Layer 2, Layer 3
- Full Annex C support
- Transmit in slotted or continuous mode
- Receive in slotted or continuous mode
- dPMR standard
- Supports dPMR Tier 1, Tier 2
- Air interface Layer 1, Layer 2, Layer 3
- Supports 1031 Hz Tone and Silence Test Mode
- Full Annex A support
- Analog Mode
- Full audio processing including compander
- CTCSS/DCS detection/generation
- Supports two-point modulation
- Embedded Vocoders
- Support for multiple vocoders
- Built-in: AMBE+2™, RALCWI
- External vocoder options
- 4FSK Modem
- 4800/9600 data rate
- Automatic frame sync detection
- Programmable modulation index
- Low power operation
- DMR mode 64mW
- dPMR mode 38mW
Applications the SCT3258TD – DMR/dPMR/Analog Processor SCT3258TD – DMR/dPMR/Analog Processor can be used for:
- DMR Radio
- dPMR Radio
- Multi-mode Digital PMR/LMR with Analog Mode
Power Supply Requirements for the SCT3258TD – DMR/dPMR/Analog Processor SCT3258TD – DMR/dPMR/Analog Processor:
- Core 1.2V
- Digital I/O 2.5V – 3.3V
For a full list of FAQs please visit the SCT3258TD page on the Technical Portal
If you require access please contact your local CML representative.
For application support please visit the SCT3258TD page on the Technical Portal
If you require access please contact your local CML representative.
For Software support please visit the SCT3258TD page on the Technical Portal
If you require access please contact your local CML representative.
| SCT9366D | The SCT9366D is a PMR radio transceiver design that supports DMR/Analog or dPMR/Analog operation. The design is based on a digital baseband processor SCT3258TD, MCU, direct conversion receiver, integrated PLL/VCO and high efficiency power amplifier.
*Obsolete, not available for sale* |
SCT9366D_Product_Preview |
| SCT3258HDK | The SCT3258-HDK development board is a comprehensive, evaluation, test and development platform that helps product designers to gain experience with the SCT3258 digital radio baseband chip. The SCT3258 HDK is ideal for comparing voice quality for various vocoders, analysing protocol bit streams, and establishing interface requirements. | SCT3258HDK_User_Manual |
