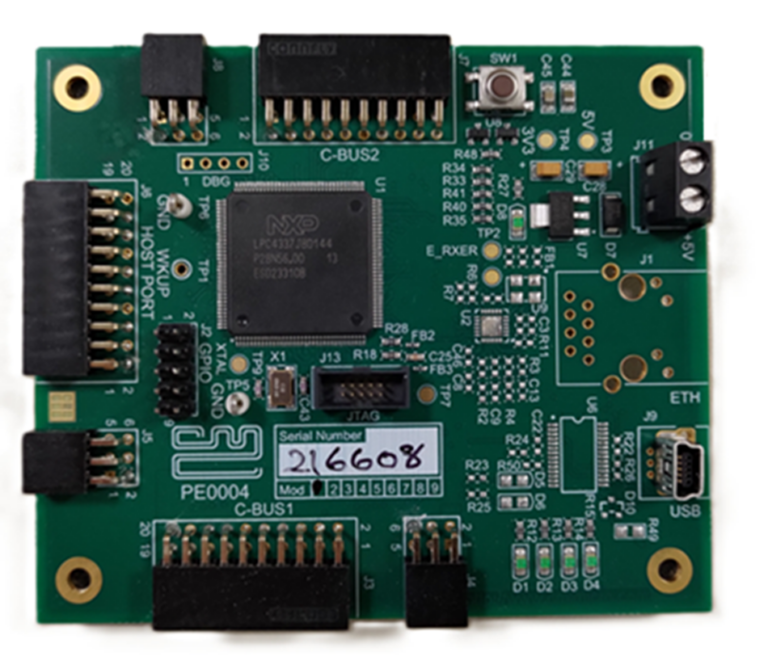

PE0004 Evaluation Kit Interface Card
The PE0004 Evaluation Kit Interface Card is an interface system for use with a range of evaluation kits.
Based around the NXP ARM microprocessor LPC4337 and using a PC GUI, the information generated is formatted, timed and delivered to the connected evaluation kit via selected C-BUS/SPI serial interfaces or a host port. The supplied control software can be used to perform C-BUS/SPI read and write operations or read or write sample data.
Communication with the PE0004 is via high-speed USB 2.0 compatible port.
The PE0004 is currently used with the following CML Evaluation kits:
• EV9180 Evaluation kit for the CMX918 Low Power Software Defined Radio (SDR) Receiver
Features
- Interface control card for EV9180 evaluation
- Target IC C-BUS read and write operations
- 32-Bit Dual core ARM Microprocessor Cortex-M4/Cortex-M0
- PC GUI and hardware provided
- PC control/communications via USB
Applications
- The PE0004 is currently used with the following: EV9180 Evaluation kit for the CMX918 Low Power Software Defined Radio (SDR) Receiver
